Slim Single-Line IP Corded Telephone – SKD-1100 (Emergency)

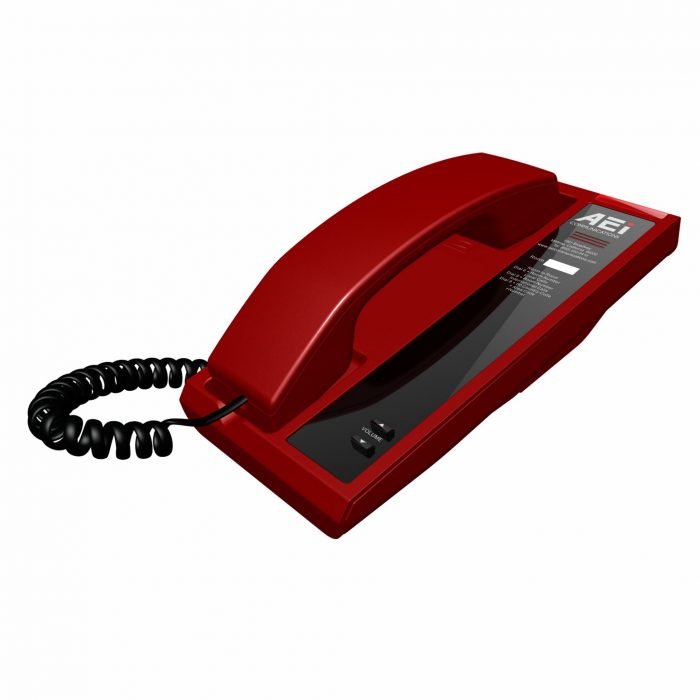

Slimline Single-line IP corded telephone

This Single-line phone is perfect when space is tight, or you don’t need too many services or functions. The elegant design and compact footprint of the SKD series make it perfect for elevator lobbies and other public spaces, as well as guest rooms in limited-service properties, or as additional phones in suites.

It’s desk or wall mountable for great flexibility. The SKD series is a perfect way to round out your offering!

Red
SKU: N/A Category:

Description

• Single line SIP emergency phone
• Message waiting indicator
• Faceplate with customizable hotel logo

All AEi IP phones are certified interoperable with these leading hospitality IP-PBX’s:

Additional information

Color

Red

Specifications

Power
Adapter Input:100-240 VAC Output:5.9V/1A (Optional)
PoE IEEE802.3af

Jacks
RJ45 Jack : 10/100 Mbps LAN port,DC jack, RJ9 Handset jack

Dimensions
224mm(L)x108mm(W)x124mm(H)

Weight
770g

Easy Administration
Web GUI
Firmware upgrade via web
Auto provisioning

Codec
G.711 (a-law, μ-law)

Network Protocol
HTTP server
Static IP, DHCP Client
ToS / VLAN IEEE 802.1 p/q

SIP
SIP V2 (RFC3261)

Security
Web login authentication for web setup
MD5 for SIP authentication (RFC2069/ RFC2617)

Voice Quality
CNG: Comfortable noise generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

EMI
USA : FCC Part 15B
EU : EN55032

Safety
EU : EN60950-1

EMC
EU :
EN55024, EC61000-4-4
EN61000-3-2, EC61000-4-5
EN61000-3-3, EC61000-4-6
IEC61000-4-2, EC61000-4-8
IEC61000-4-3, EC61000-4-11

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Temperature
Storage: -10º C to +60º C
Operating: +5º C to +35º C

Datasheet

SKD-1100 Emergency phone datasheet v2.6
