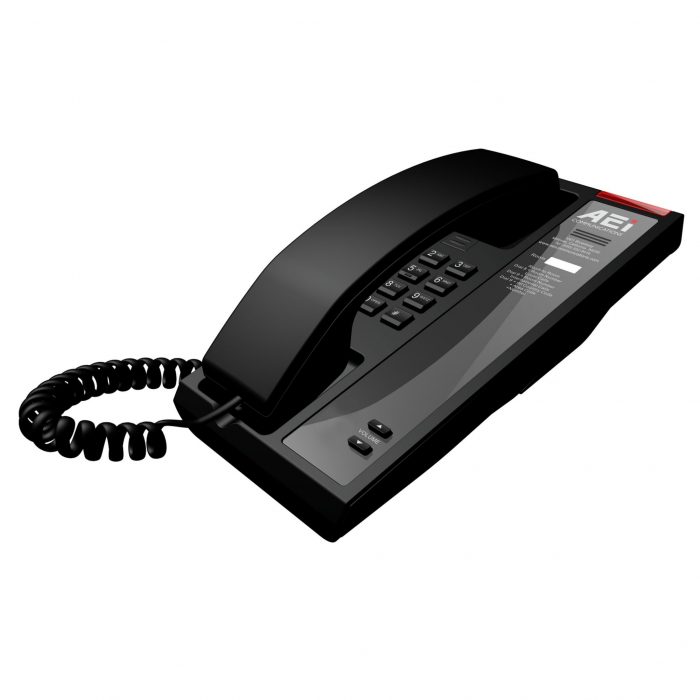

SKD-1100 – Slim Single-Line IP Corded Telephone

Slimline Single-line IP corded telephone

This Single-line phone is perfect when space is tight, or you don’t need too many services or functions. The elegant design and compact footprint of the SKD series make it perfect for elevator lobbies and other public spaces, as well as guest rooms in limited-service properties, or as additional phones in suites.

It’s desk or wall mountable for great flexibility. The SKD series is a perfect way to round out your offering!

ashashblackblack

Description

• One Line
• Hearing Aid Compatible
• Handset Volume Control
• Room Number Displayed on Faceplate
• Message Waiting & Ring Indicator on Base
• Customizable Hotel Logo and Dialing Instructions on Faceplate

All AEi IP phones are certified interoperable with these leading hospitality IP-PBX’s:

Additional information

Color

ash, black

Specifications

Power
Adapter 100-240 VAC Output 6V/1A (Optional)
PoE IEEE802.3afJacks
10/100 RJ45 WAN
RJ9 Handset

Dimensions
225mm(L)x110mm(W)x50mm(H) (8.86″x4.33″x1.97″)

Weight
660g

Easy Administration
GUI
Web Based speed-dial key setting for m1-m6
Firmware Upgrade via Web
Auto Provisioning
IP Address auto announcement from Handset

Codec
G.711a/u-low/G.723/G.729

Network Protocol
Telnet / http Server / DNS Client
PPPoE / Static / DHCP Client IP assignment.
ToS field / VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V1 (RFC2543) SIP V2 (RFC3261)Security
Web Login authentication for web setup
MD5 for SIP authentication (RFC2069/ RFC2617)

Voice Quality
CNG Comfortable Noise Generator
LEC Line Echo Canceller
Jitter Buffer
VAD Voice Activity Detection
Packet Loss Compression

EMI
USA: FCC Part 15B,D ICES-003 EU: EN 55022

EMC
EU: EN 55024, EN 61000-4-4, EN 61000-3-2, IEC 61000-4-5
EN 61000-3-3, IEC 61000-4-6, EN 61000-4-2, IEC 61000-4-11

RoHS
Comply with directive 2002/95/EC RoHS (2005/613/EC)

Temperature
Storage: -10°C to +60°C
Operating: +5°C to +35°C

Datasheet

SKD-1100-datasheet v2.6



User Guide

SKD SLN series QIG v1.02
