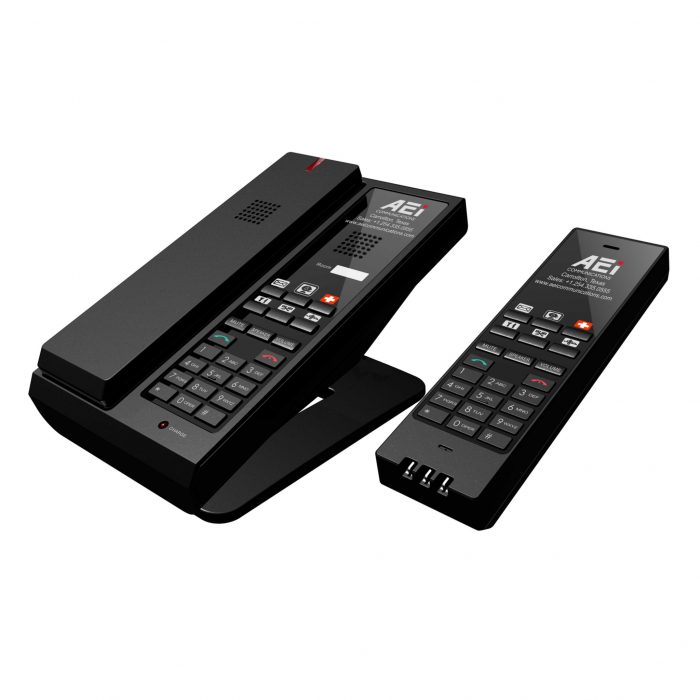

SGR-8106-SMK – Single-Line IP Non Display Cordless Telephone with Dual Keypad (master)

Single-line VoIP DECT Cordless Speakerphone

Our state-of-the-art IP cordless phone has it all: Compact footprint; the latest IP voice technologies; dual speakerphones; guest service keys on handset and base, and much more!

From the way our trim cordless handset feels in your hand, to the amazingly clear voice quality, the convenient color handset LCD, and more leading-edge features, SGR 8100 series IP cordless phones are durable, reliable, and look great in any guest room.

ash
black
SKU: N/A Categories: , ,

Description

• Set includes Base (master) and Handset (extension)
• Fully interoperable with all popular hospitality IP PBXs
• The latest DECT technology for crystal clear calls
• Up to six (6) programmable guest service keys on handset and base
• Full duplex base and handset speakerphones
• Supports up to four DECT handsets – perfect for suites!
• Easy management with Web-based admin GUI & auto provisioning
• ADA-compliant volume control

All AEi IP phones are certified interoperable with these leading hospitality IP-PBX’s:

Additional information

Color

ash, black

Specifications

Codec
G.711

Protocol
HTTP server
Static IP, DHCP Client
ToS/VLAN IEEE 802.1 p/q
SRTP protocol is not available in fear of the Eurasian Economic Community

SIP
SIP V2 (RFC3261)

Security
Web login authentication for web setup MD5 for SIP authentication (RFC 2069/ RFC2617)
TLS 1.2

DTMF
In-Band/Out-of-Band DTMF(RFC2833)/SIP Info (RFC2976)

Voice Quality
Echo canceller: LEC/AEC
CNG: Comfortable noise generator
Jitter buffer/PLC

Keys
Dial keys; Line keys
Mute, Speaker, Volume, 6 Speed Dials

Administration
Web GUI configurable
Firmware upgrade via TFTP
Auto provisioning via TFTP

Power
PoE : IEEE 802.3af compliant
AC adaptor:
Input: 100 ~ 240 VAC, Output: 5.9V / 1A(optional)

LED Indications
Message waiting indicator and keypad backlight

Colors
Black, Ash (Custom colors on request)

Dimensions
193mm(L)x109mm(W)x111mm(H)

Weight
610g

Jacks
RJ45 10/100 Mbs; LAN port x 1, PC port x 1

DECT Master Standard
EU:1881.792(ch0)~1897.344(ch9) 10 Channels
US:1921.536(ch0)~1928.448(ch4) 5 Channels
JP:1895.616(ch0)~1902.528(ch4) 5 Channels
Channel Space:1728 KHz
Bit rate:1150 Kbit/s
Modulation: GFSK
Voice coding:16 Kbit/s
RF power: 7dBm

Faceplate
Durable full length custom plastic

Cords
Ethernet cable (10’ std.)

RF
USA: FCC Part 15D
EU: EN 301406

EMI
USA: FCC Part 15B
EU: EN 300386

SAR
EU: EN 62479

Safety
EU: EN 60950-1

EMC
EU: EN 301489-1/6

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Temperature
Storage: -10º C to +60º C
Operating: +5º C to +35º C





Datasheet

SGR-8106-SMK non-display datasheet v2.71

user guide

SGR-8106-SMK_Non_Display_QIG_v1.02

Battery Care

Battery Care Instruction
