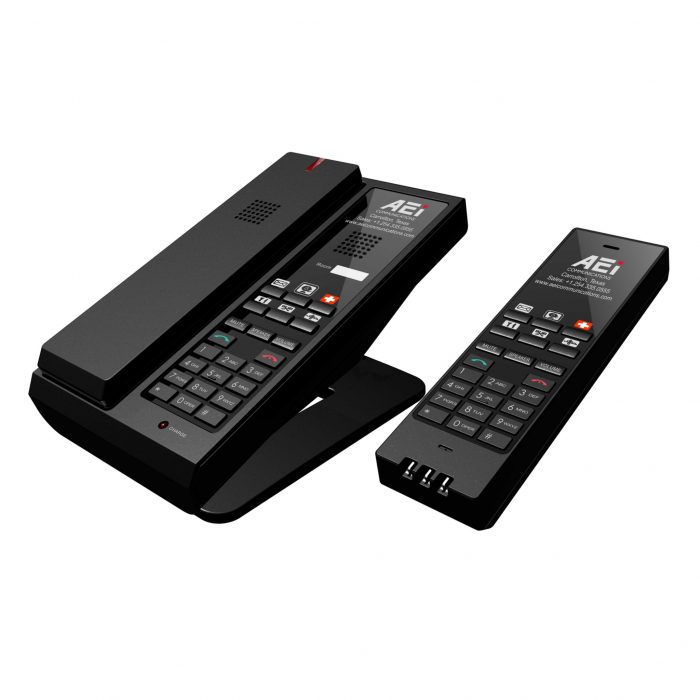

AGR-8106-SMK – Single-Line Analog Non Display Cordless Telephone with Dual Keypad (master)

One-Line Analog Base and DECT Cordless Extension

Our AGR series of DECT cordless phones sets the standard for style and function. With the most compact footprint available in a hotel cordless phone, you’ll love how the AGR cordless fits in just about anywhere.
Our unique design features programmable guest service keys on both the handset and base, so its easier for guests to reach the services they need. When it’s easier for guests to order services, you’ll earn more revenue!
Full duplex speakerphones on both the handset and base provide even greater guest convenience. Now, no matter where guests are in the room or suite, they can enjoy a quality speakerphone call!

ashashblackblack

Description

• Set includes Base (master) and DECT Handset (extension)
• Fully interoperable with all popular hospitality IP PBXs
• The latest DECT technology for crystal clear calls
• Up to six (6) programmable guest service keys on handset and base
• Full duplex base and handset speakerphones
• Supports up to four DECT handsets – perfect for suites!

All AEi IP phones are certified interoperable with these leading hospitality IP-PBX’s:

Additional information

Color

ash, black

Specifications

AC Adapter
Input: 100-240 VAC Output: 5.9V/1A

Battery
3.7V 900 mAH Lithium Ion

Charging Time
5 Hours

Standby Time
240 Hours

Jacks
RJ14 (1); RJ11 (1); DC input

Dimensions
193mm(L)x109mm(W)x111mm(H)

Weight
610g

RF
USA : FCC Part 15D
EU: EN301406

EMI
USA: FCC Part 15B
EU: EN300386

SAR
EU: EN62479

Safety
EU: EN60950-1

EMC
EU: EN301489-1/-6

PSTN
USA: Part 68
EU: TBR21

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

DECT Standard
DECT / CAT iq 2.0 compatible

Frequency Range
1880-1930 Mhz

EU band
1881.792 (ch0) – 1897.334 (ch9) 10 Channels

US band
1921.536 (ch0) – 1928.448 (ch4) 5 Channels

Channel spacing
1728 Khz

Bit rate
1150 Kbit/sec

Modulation
GFSK

Voice coding
16 Kbits/sec

Temperature
Storage -10°C to +60°C
Operating +5°C to +35°C

Datasheet

AGR-8106-SMK non-display datasheet v2.61

User Guide

AGR-8106-SMK_Non Display QIG v1.00

Battery Care

Battery Care Instruction
