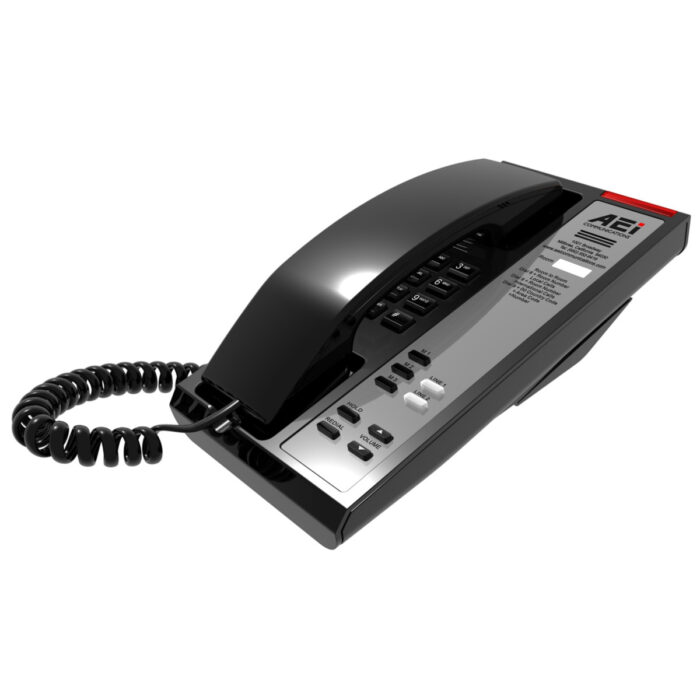

Slim Dual-Line IP Corded Telephone – SKD-1203

Slimline two-line IP corded telephone

This two-line phone is perfect when space is tight, or you don’t need too many services or functions. The elegant design and compact footprint of the SKD series make it perfect for elevator lobbies and other public spaces, as well as guest rooms in limited-service properties, or as additional phones in suites.

It’s desk or wall mountable for great flexibility. The SKD series is a perfect way to round out your offering!

ashblack

Description

• 2 lines SIP phone
• 3 customizable service dials
• Message waiting indicator
• Faceplate with customizable hotel logo

All AEi IP phones are certified interoperable with these leading hospitality IP-PBX’s:

Additional information

Color

ash, black

Specifications

Power
Adapter: 100-240 VAC Output 5.9V/1A (Optional)
PoE: IEEE 802.3af compliant

Jacks
10/100 RJ45 WAN
RJ9 Handset

Dimensions
224mm(L)x108mm(W)x124mm(H)

Weight
770g

Easy Administration
GUI
Firmware Upgrade via Web
Auto Provisioning

Codec
G.711 (a-law, μ-law)

Network Protocol
HTTP server
ToS / VLAN IEEE 802.1 p/q
Static IP, DHCP Client

SIP
SIP V1 (RFC2543) SIP V2 (RFC3261)

Security
Web Login authentication for web setup
MD5 for SIP authentication (RFC2069/ RFC2617)

Voice Quality
CNG: Comfortable noise generator
Echo canceller: LEC / AEC
Jitter buffer/PLC

EMI
USA: FCC Part 15B
EU: EN55032

Safety
EU: EN60950-1

EMC
EU:
EN55024, EC61000-4-4,
EN61000-3-2, EC61000-4-5.
EN61000-3-3, EC61000-4-6,
IEC61000-4-2,EC61000-4-8
IEC61000-4-3,EC61000-4-11

RoHS
Comply with directive 2002/95/EC RoHS (as amended by commission decision 2005/613/EC)

Temperature
Storage -10°C to +60°C
Operating +5°C to +35°C
